CBW-2800 Triplex Plunger Pump for Crude Oil Transfer

The CBW-2800 pump is a single acting triplex reciprocating plunger pump.

Modelo :
CBW-2800
Tipo :
Plunger Pump
Ataque :
190
Diámetro del cilindro :
160
Fluir :
2800
Presión :
18
Puerto de embarque :
Shanghai Port, China
Garantía :
12 Months

Pregunte ahora

Detalles de producto

The CBW-2800 reciprocating pump is a versatile horizontal triplex single acting plunger pump featuring five flow settings. Deployed for existing transfer operations in this project, it demonstrated exceptional adaptability during crude oil conveyance. Its multi-purpose design enables flexible operation across diverse working conditions to meet varied transfer requirements. The five-stage flow rate design provides operators with greater control options, allowing flow adjustment based on actual conditions for more precise delivery. Furthermore, the reciprocating single acting plunger pump's operating principle ensures stable and continuous delivery, reducing downtime risks caused by equipment failures. This design not only enhances delivery efficiency but also further strengthens equipment reliability in complex operating conditions.

The CBW-2800 crude oil transfer pump is suitable for multiple complex working environments, such as high temperature, high pressure, or impurity-containing crude oil transfer scenarios.

This equipment is equipped with a wireless remote control system, touchscreen remote operation, and real-time monitoring via display screen.

Technical Parameters and Specifications

Type	Horizontal Triplex Reciprocating Single-Acting Plunger Pump
Stroke(mm)	190
Cyclinder Diameter (mm)	160
Flow (L/min)	2800
Pressure (Mpa)	18
Pump Speed (r/min)	248
Rated Power (KW)	403
Dimensions (mm)	5835×2990×2570
Weight (kg)	15800
Maximum Input Torque(N·m)	10800
Diameter of Plunger(mm)	Φ160

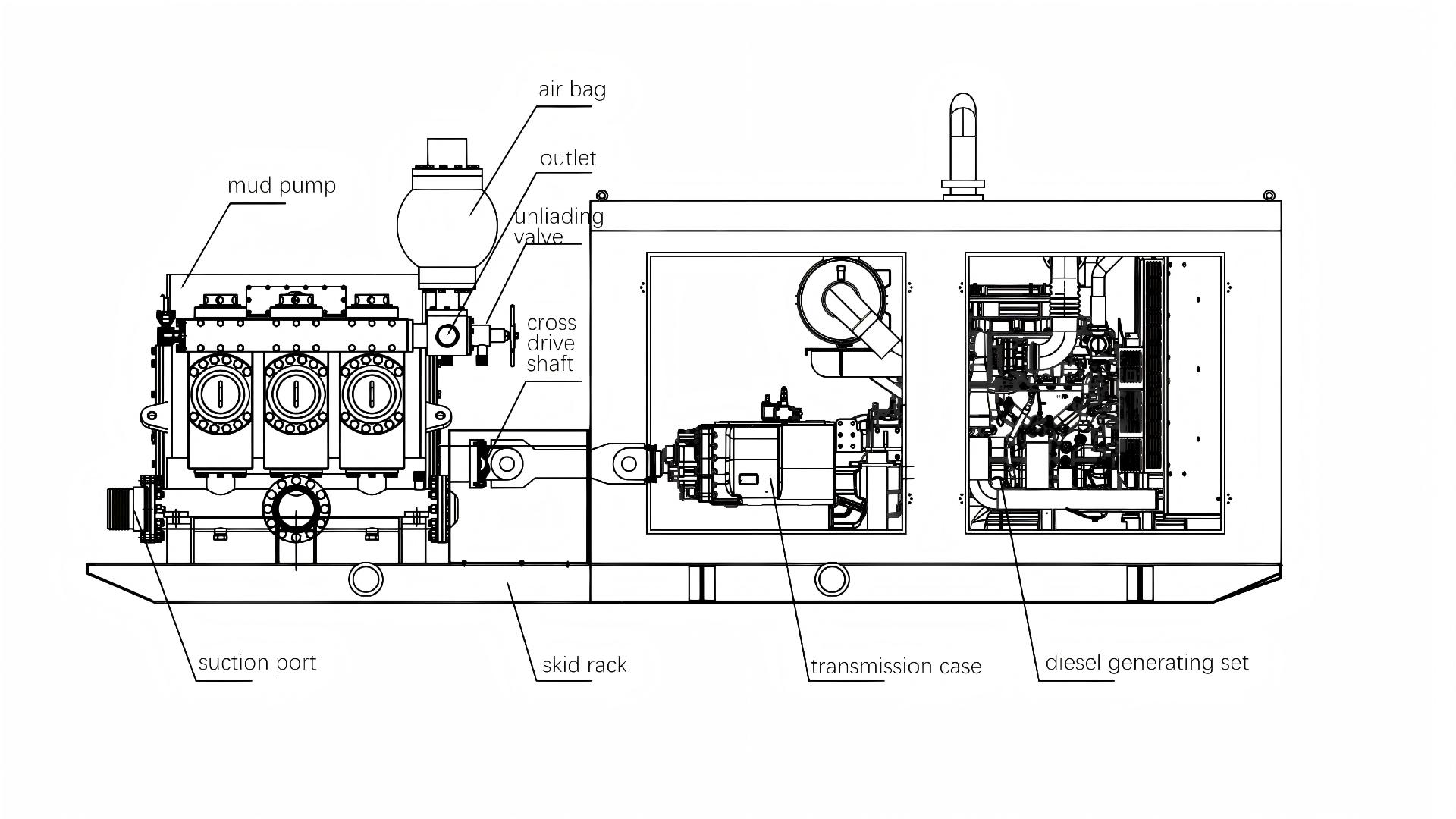

Engineering dimensional outline

Advantages

High-efficiency conveying capacity enables the rapid transportation of large volumes of crude oil, enhancing overall operational efficiency.
Advanced sealing technology effectively prevents crude oil leakage, ensuring safety and environmental compliance during transportation.
Compact and rational structural design minimizes footprint, facilitating installation and operation across diverse site conditions.
Smooth operation with low noise levels provides a quieter working environment, reducing impact on surrounding areas.
Strong corrosion resistance enables adaptation to various corrosive substances potentially present in crude oil, extending equipment lifespan.
Simple maintenance with quick and easy component replacement reduces equipment maintenance costs and time.
