In industrial fluid transfer and high pressure system design, piston pumps and plunger pumps are core positive displacement power equipment. Their selection directly affects the operational efficiency, maintenance cost, and reliability of industrial fluid transfer and high pressure systems.

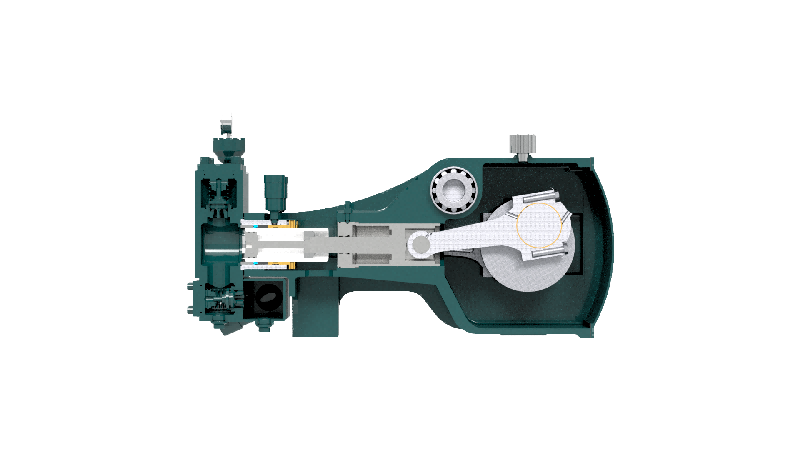

1. Piston Pumps
Piston pumps typically use a piston as the sealing element, featuring a relatively simple structure and lower manufacturing and maintenance costs. Due to the larger sealing contact area and relatively higher friction losses, piston pumps are more suitable for medium-to-low pressure, large-flow applications. In drilling engineering and construction, piston pumps paired with wear-resistant cylinder liners can reliably transfer sand-laden mud or high-viscosity liquids.

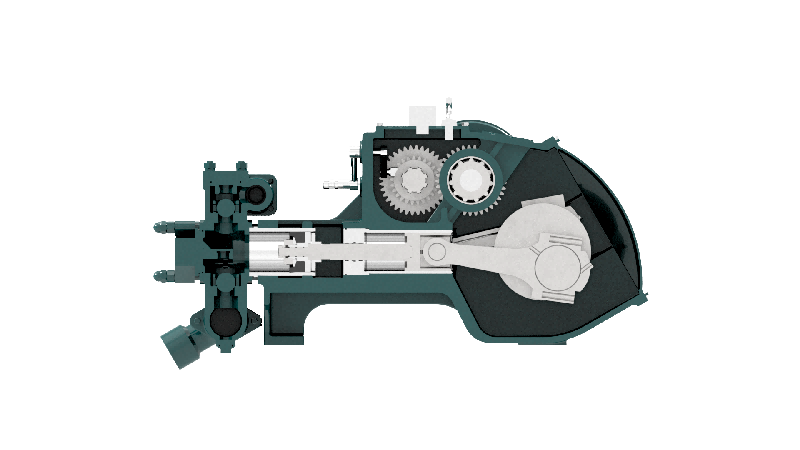

2. Plunger Pumps
Plunger pumps rely on the precision fit between the plunger and cylinder, along with high pressure sealing components. Their pressure-bearing capacity and volumetric efficiency are superior to piston pumps, making them suitable for demanding high pressure conditions with excellent pressure fluctuation control. They are widely used in high pressure cleaning, hydraulic transmission, and fine chemical processing, where pressure stability is critical. Their disadvantages include complex manufacturing processes, high initial investment, and sensitivity to medium cleanliness — but in applications requiring continuous, stable high pressure fluid output, they are irreplaceable key equipment.
3.Quick Selection
| Piston Pump | Plunger Pump | |
| High & ultra-high pressure | √ | |
| Medium & low pressure | √ | |
| Media containing viscous suspended particles or hard impurities | √ | |
| Flammable/explosive or highly toxic media (zero leakage) | √ | |
| High continuous operation time (24/7) | √ | |
| Wearing part replacement & maintenance downtime | √ | |
| Lower initial procurement cost | √ |
Working pressure determines the pressure-bearing limit of the pump body structure, while the conveyed medium determines the service life of the pump body material. Elephant Machinery manufactures API 674-compliant reciprocating piston pumps and plunger pumps, offering customized design and production services for both bare pumps and skid-mounted units.
